High Performance PMM Multistart Connector

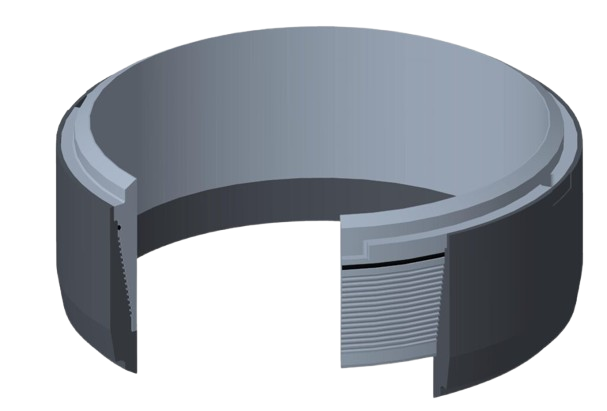

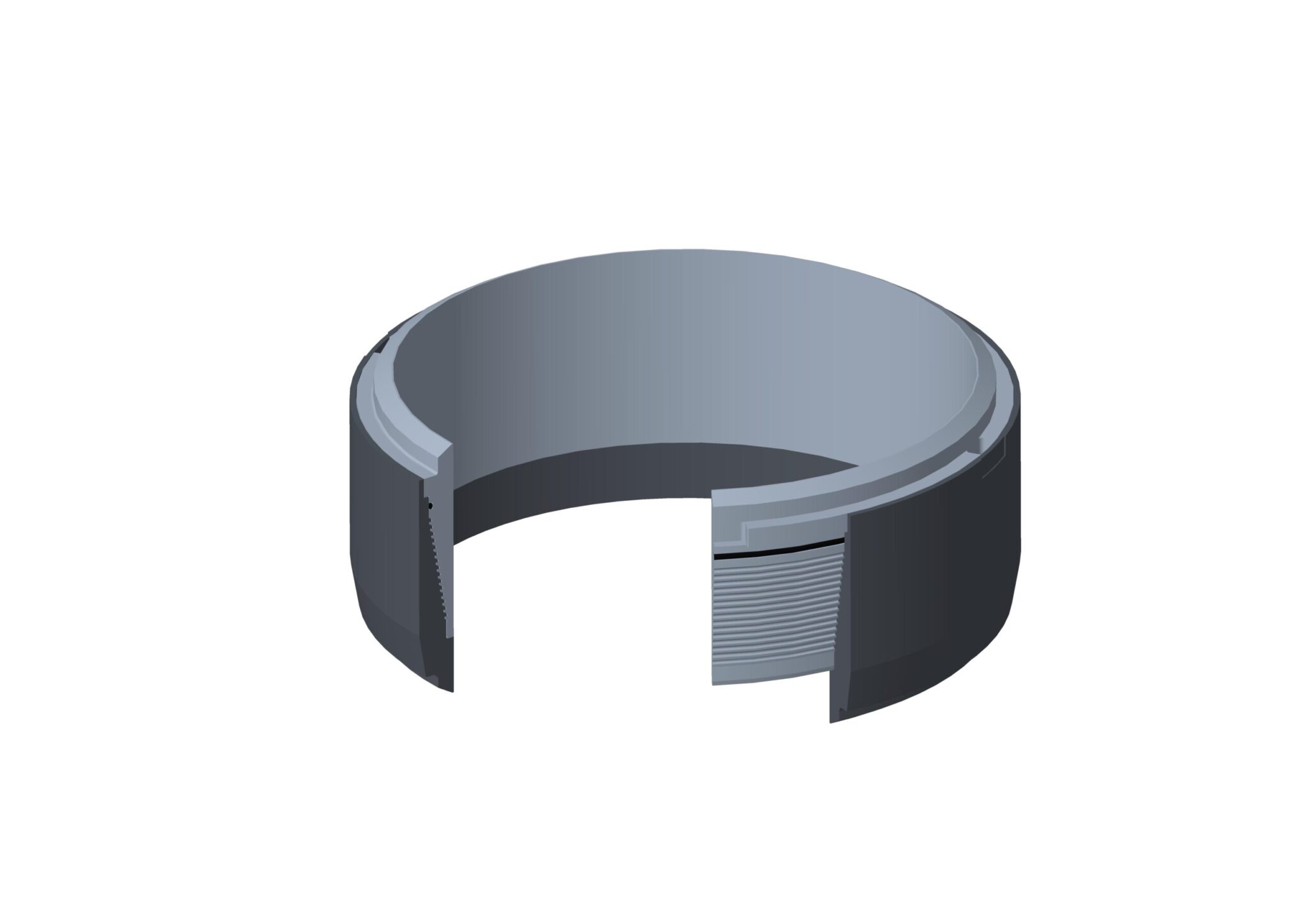

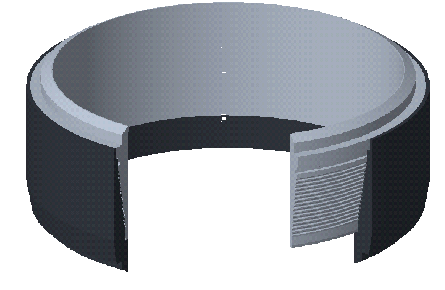

The PMM Multistart is a high-strength connector designed for a wide range of drilling environments, including land, platform, jack-up, and subsea/deepwater operations, as well as highly deviated deep wells. It combines the benefits of a preloaded thread-type connector with the fast and easy make-up required for offshore use, providing mechanical strength greater than that of the casing pipe. Its self-aligning, high-cone angle design—available in twin or four-start threads—allows the box to engage about 90% of the pin length, ensuring quick and accurate assembly with minimal turns and no cross-threading.

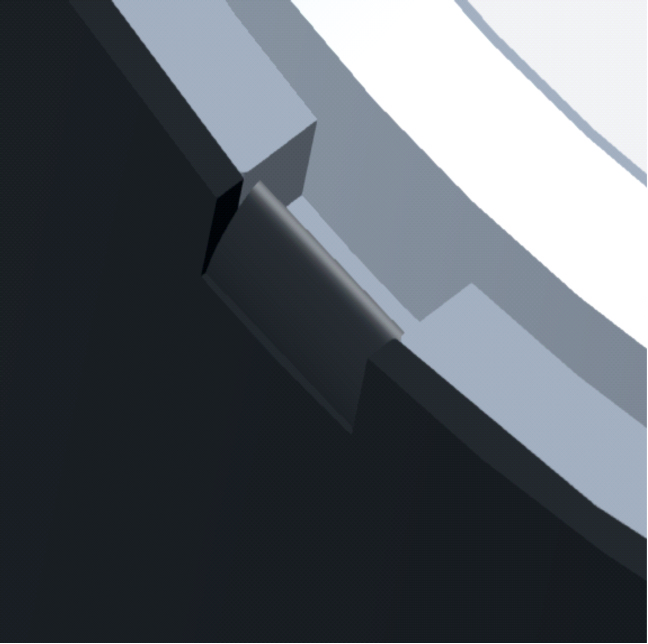

To ensure secure torque transmission and prevent back-off during operation, the PMM Multistart features integral anti-rotation tabs that can be engaged using a Hilti gun or manual shear tool, offering breakout torque up to 90,000 ft-lb. The connector has successfully met the requirements of ISO 13679:2019 CAL I, with performance verified through rigorous internal and third-party testing.

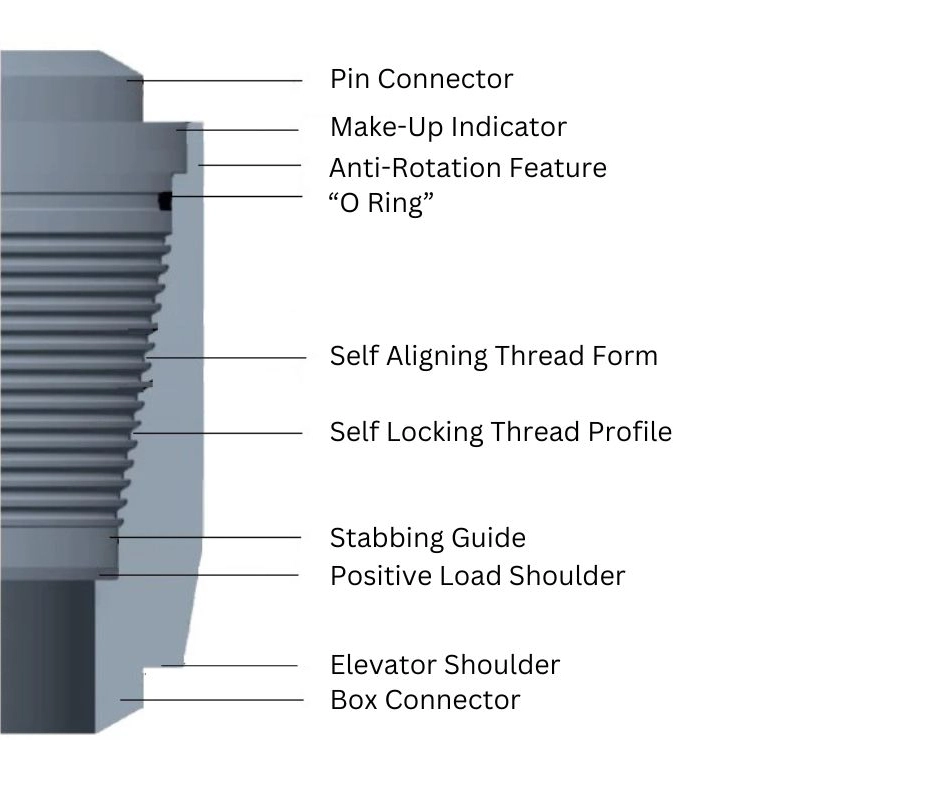

Key features of all PMM Multistart Connector
Self Aligned
Stronger Than Casing Pipe
No cross Threading
Low-Torque
Make-up
Less Than One
Turn Make-up
Integral 4-Point
Anti-Rotation
Suitable For
Piling/Jetting.
Reversible
and Reusable.
Visual Indication
of Make-up.
Data Table
| Model | Material | Yield (ksi) | Pipe Nominal OD (in) | Pipe Nominal OD (mm) | Pipe Wall Thickness (in) | Pipe Wall Thickness (mm) | Connector OD (in) | Connector OD (mm) | Connector ID (in) | Connector ID (mm) | Made up Length (in) | Made up Length (mm) | Tension Yield (kips) | Tension Yield (MN) | Bending Yield (kips.ft) | Bending Yield (MN.m) | Burst Pressure (psi) | Burst Pressure (MPa) | Collapse Pressure (psi) | Collapse Pressure (MPa) | Make up Torque (ft.lb) | Make up Torque (kN.m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UDT LEOPARD | SDF | 80 | 18.625 | 473 | 0.435 | 11.0 | 19.91 | 506 | 17.76 | 451 | 8.00 | 203 | 168.5 | 7.5 | 624 | 0.8 | 2300 | 15.9 | 3000 | 20.7 | 18 to 24 | 24.4 to 32.5 |
| SDF | 80 | 18.625 | 473 | 0.435 | 11.0 | 19.91 | 506 | 17.76 | 451 | 8.00 | 203 | 168.5 | 7.5 | 624 | 0.8 | 2300 | 15.9 | 22.6 | 6.0 | 18 to 24 | 24.4 to 32.5 | |
| S | 70 | 20 | 508 | 0.438 | 11.1 | 21.19 | 538 | 18.75 | 476 | 8.75 | 222 | 209.9 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 | |
| SIF | 70 | 20 | 508 | 0.438 | 11.1 | 21.82 | 554 | 19.12 | 486 | 8.75 | 222 | 209.9 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 | |
| S | 70 | 20 | 508 | 0.5 | 12.7 | 21.19 | 538 | 18.50 | 470 | 8.75 | 222 | 227.0 | 10.1 | 900 | 1.2 | 2700 | 18.6 | 901 | 6.2 | 20 to 26 | 27.1 to 35.3 | |
| SIF | 70 | 20 | 508 | 0.625 | 15.9 | 21.53 | 547 | 18.75 | 476 | 8.75 | 222 | 248.6 | 11.1 | 973 | 1.3 | 3400 | 23.4 | 1724 | 11.9 | 20 to 26 | 27.1 to 35.3 | |
| SD | 80 | 20 | 508 | 0.812 | 20.6 | 21.19 | 538 | 18.00 | 457 | 8.75 | 222 | 300.0 | 13.3 | 1200 | 1.6 | 5200 | 35.9 | 3100 | 21.37 | 20 to 26 | 27.1 to 35.3 | |
| SIF | 70 | 20 | 508 | 1.0 | 25.4 | 21.19 | 538 | 18.00 | 457 | 8.75 | 222 | 361.2 | 16.1 | 1362 | 1.8 | 4940 | 34.0 | 4975 | 34.3 | 20 to 26 | 27.1 to 35.3 | |
| SDF | 80 | 20 | 508 | 1.0 | 25.4 | 21.19 | 538 | 18.00 | 457 | 8.75 | 222 | 411.9 | 18.3 | 1553 | 2.1 | 5450 | 37.6 | 5804 | 40.0 | 20 to 26 | 27.1 to 35.3 | |
| SD | 80 | 24 | 610 | 1.0 | 25.4 | 25.77 | 655 | 21.50 | 546 | 13.12 | 333 | 498.6 | 22.2 | 2294 | 3.1 | 4100 | 28.3 | 3758 | 25.9 | 24 to 30 | 32.5 to 40.7 | |
| SD | 80 | 26 | 660 | 0.75 | 19.1 | 28.29 | 718 | 24.25 | 616 | 10.25 | 260 | 453.9 | 20.2 | 2321 | 3.1 | 3500 | 24.1 | 1623 | 11.2 | 28 to 39 | 38.0 to 52.9 | |
| SDF | 80 | 26 | 660 | 1.0 | 25.4 | 28.29 | 718 | 24.00 | 610 | 13.62 | 346 | 541.9 | 24.1 | 2321 | 3.1 | 3500 | 24.1 | 3180 | 21.9 | 30 to 39 | 40.7 to 52.9 | |
| SD | 80 | 30 | 762 | 1.0 | 25.4 | 31.79 | 807 | 27.50 | 699 | 13.12 | 333 | 631.7 | 28.1 | 3694 | 5.0 | 3500 | 24.1 | 2348 | 16.2 | 35 to 45 | 47.5 to 61.0 | |
| SDF | 80 | 30 | 762 | 1.0 | 25.4 | 32.28 | 820 | 28.00 | 711 | 13.12 | 333 | 631.7 | 28.1 | 3694 | 5.0 | 3500 | 24.1 | 2348 | 16.2 | 35 to 45 | 47.5 to 61.0 | |
| SDIF | 100 | 30 | 762 | 1.5 | 38.1 | 31.79 | 807 | 27.00 | 686 | 13.12 | 333 | 928.7 | 41.2 | 5242 | 7.1 | 5170 | 35.6 | 3831 | 40.2 | 35 to 45 | 47.5 to 61.0 | |
| SDRB | 80 | 36 | 914 | 1.0 | 25.4 | 36.90 | 937 | 32.61 | 828 | 13.19 | 335 | 616.0 | 27.4 | 4380 | 5.9 | 3000 | 20.7 | 1488 | 10.2 | 42 to 54 | 56.9 to 73.2 | |
| SDRB | 80 | 36 | 914 | 1.5 | 38.1 | 36.90 | 937 | 32.06 | 814 | 13.19 | 335 | 911.0 | 40.5 | 6292 | 8.5 | 4105 | 28.3 | 3664 | 25.3 | 42 to 54 | 56.9 to 73.2 | |
| SDRB | 100 | 36 | 914 | 1.5 | 38.1 | 36.90 | 937 | 32.06 | 814 | 13.19 | 335 | 1117.5 | 50.6 | 7850 | 10.6 | 5100 | 35.2 | 4200 | 28.96 | 42 to 54 | 56.9 to 73.2 | |
| SDRB | 90 | 36 | 914 | 2.0 | 50.8 | 36.90 | 937 | 32.00 | 813 | 13.19 | 335 | 1200.0 | 53.4 | 8080 | 10.9 | 6040 | 41.6 | 5500 | 37.9 | 42 to 54 | 56.9 to 73.2 | |
| SDC | 100 | 36 | 914 | 2.0 | 50.8 | 37.25 | 946 | 31.50 | 800 | 19.42 | 493 | 1610.0 | 71.6 | 11500 | 15.6 | 6750 | 46.5 | 4750 | 32.8 | 42 to 54 | 56.9 to 73.2 | |
| SEF | 70 | 20 | 508 | 1.0 | 25.4 | 20.00 | 508 | 16.80 | 427 | 10.00 | 254 | 360.6 | 16.0 | 1360 | 1.8 | 5000 | 34.1 | 4975 | 34.3 | 20 to 26 | 27.1 to 35.3 | |
| SDEF | 80 | 20 | 508 | 1.0 | 25.4 | 20.00 | 508 | 16.80 | 427 | 10.00 | 254 | 411.9 | 18.3 | 1553 | 2.1 | 5000 | 34.1 | 5804 | 40.0 | 20 to 26 | 27.1 to 35.3 | |
| SDEF | 80 | 30 | 762 | 1.0 | 25.4 | 30.00 | 762 | 25.20 | 640 | 15.00 | 381 | 546.6 | 24.3 | 3196 | 4.3 | 3500 | 24.1 | 2348 | 16.2 | 35 to 45 | 47.5 to 61.0 | |
| SDEF | 80 | 30 | 762 | 1.5 | 38.1 | 30.00 | 762 | 25.20 | 640 | 15.00 | 381 | 926.7 | 41.2 | 5242 | 7.1 | 5000 | 34.1 | 5831 | 40.2 | 35 to 45 | 47.5 to 61.0 | |
| SDEF | 80 | 36 | 914 | 1.0 | 25.4 | 36.00 | 914 | 31.75 | 806 | 14.69 | 373 | 659.7 | 29.3 | 4681 | 6.3 | 3500 | 24.1 | 1450 | 10.0 | 42 to 54 | 56.9 to 73.2 | |
| SDEF | 80 | 36 | 914 | 1.5 | 38.1 | 36.00 | 914 | 31.20 | 792 | 16.19 | 411 | 1138.0 | 50.6 | 7854 | 10.7 | 4300 | 24.1 | 3758 | 25.9 | 42 to 54 | 56.9 to 73.2 |

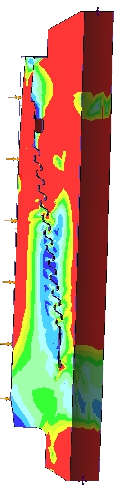

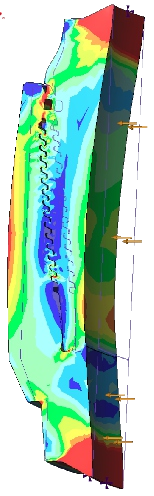

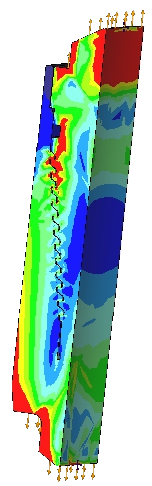

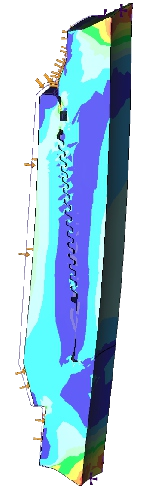

PMM Multistart FINITE ELEMENT ANALYSIS
TENSILE
BENDING
INTERNAL PRESSURE
COLLAPSE PRESSURE
Global Oilfield Equipment Manufacturer
| Type | Material Yield (ksi) |
Pipe Nominal OD | Pipe Wall Thickness | Connector OD | Connector ID | Make Up Length | Tension Yield | Bending Yield | Burst Pressure | Collapse Pressure | Make Up Torque | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | klps | MN | (kips.ft) | (MNm) | (psi) | (MPa) | (psi) | (MPa) | (kips.ft) | (kNm) | ||
| SIF | 70 | 18.625 | 473 | 0.435 | 11 | 19.91 | 506 | 17.76 | 451 | 8 | 203 | 1477 | 6.6 | 547 | 0.7 | 2900 | 20 | 744 | 5.1 | 18 to 24 | 24.4 to 32.5 |
| SDIF | 80 | 18.625 | 473 | 0.435 | 11 | 19.91 | 506 | 17.76 | 451 | 8 | 203 | 1685 | 7.5 | 624 | 0.8 | 3300 | 22.6 | 868 | 6 | 18 to 24 | 24.4 to 32.5 |
| S | 70 | 20 | 508 | 0.438 | 11.1 | 21.19 | 538 | 18.75 | 470 | 8.75 | 222 | 2099 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 |
| SIF | 70 | 20 | 508 | 0.5 | 12.7 | 21.82 | 554 | 19.12 | 486 | 8.75 | 222 | 2099 | 9.3 | 837 | 1.1 | 2300 | 15.9 | 600 | 4.1 | 20 to 26 | 27.1 to 35.3 |
| S | 70 | 20 | 508 | 0.5 | 12.7 | 21.19 | 538 | 18.5 | 470 | 8.75 | 222 | 2270 | 10.1 | 900 | 1.2 | 2700 | 18.6 | 901 | 6.2 | 20 to 26 | 27.1 to 35.3 |
