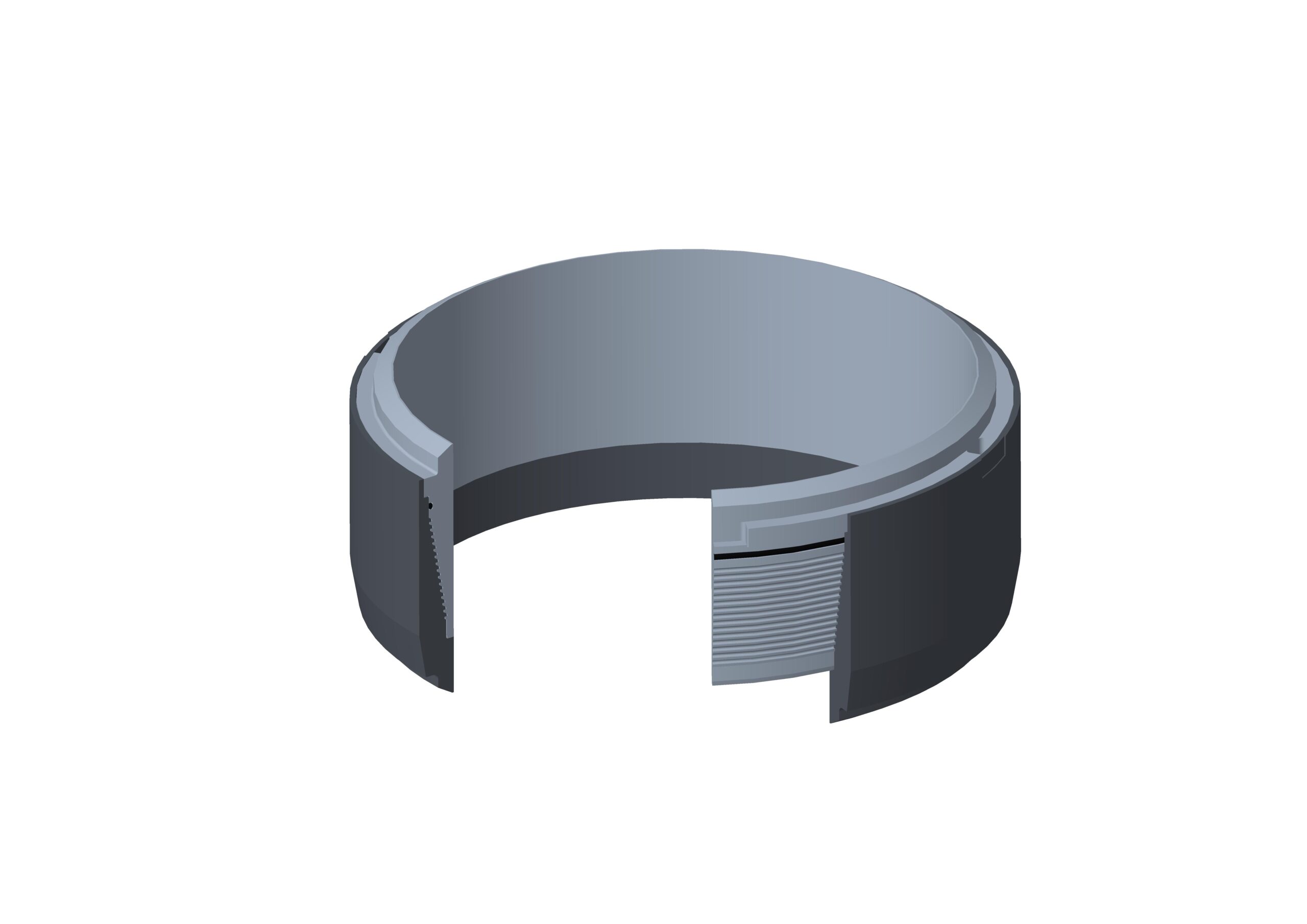

PMM Weight Set: High-Strength Flush Threaded Connector
PMM Weight Set is a threaded connector with both OD & ID flush feature suitable for use in oil wells where size restriction precludes the use of upset casing connectors. The connector is suitable for driving applications and utilizes high strength material to enable the connection to exceed the pipe physical properties.
These connectors do not need any special tools for lowering and can be installed using conventional casing tongs.
Key features of all PMM Weight Set Connectors
Flush OD
flush ID
Suitable for
piling
Visual indication of make-up
Elastomer O-ring seals
Low torque, four turn make-up
Pre-
loaded
Data Table
| Model | Type | Mat. Yield | Pipe Nominal OD | Pipe Wall Thickness | Connector OD | Connector ID | Made-up Length | Tension Yield | Bending Yield | Compression Yield | Internal Yield Pressure | Make-up Torque | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (kip) | (MN) | (kip) | (MN) | (kip) | (MN) | (psi) | (MPa) | (ft-lb) | (N-m) | |||
| UDT PUMA | F | 60 | 18.625 | 473 | 0.435 | 11.0 | 18.63 | 473 | 17.76 | 451 | 7.88 | 200 | 7.00 | 3.36 | 273 | 0.4 | 895 | 4.0 | 30.0 | 20.7 | 18 to 21 | 24.4 to 28.5 |
| F | 100 | 18.625 | 473 | 0.435 | 11.0 | 18.63 | 473 | 17.76 | 451 | 7.88 | 200 | 1,227 | 5.5 | 454 | 0.6 | 1,491 | 6.6 | 30.0 | 20.7 | 18 to 21 | 24.4 to 28.5 | |
| DF | 60 | 20 | 508 | 0.5 | 12.7 | 20.00 | 508 | 19.00 | 483 | 7.15 | 182 | 9.35 | 4.2 | 371 | 0.5 | 1,103 | 4.9 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| DF | 100 | 20 | 508 | 0.5 | 12.7 | 20.00 | 508 | 19.00 | 483 | 7.15 | 182 | 1,559 | 6.9 | 618 | 0.8 | 1,838 | 8.2 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| F | 60 | 20 | 508 | 0.625 | 15.9 | 20.00 | 508 | 18.75 | 476 | 7.15 | 182 | 1,262 | 5.6 | 494 | 0.7 | 1,370 | 6.1 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| F | 100 | 20 | 508 | 0.625 | 15.9 | 20.00 | 508 | 18.75 | 476 | 7.15 | 182 | 2,104 | 9.4 | 823 | 1.1 | 2,283 | 10.2 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| DF | 60 | 20 | 508 | 0.75 | 19.1 | 20.00 | 508 | 18.50 | 470 | 8.57 | 218 | 1,385 | 7.0 | 613 | 0.8 | 1,633 | 7.3 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| DF | 100 | 20 | 508 | 0.75 | 19.1 | 20.00 | 508 | 18.50 | 470 | 8.57 | 218 | 2,641 | 11.7 | 1,021 | 1.4 | 2,721 | 12.1 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| DF | 60 | 20 | 508 | 1.0 | 25.4 | 20.00 | 508 | 18.00 | 457 | 11.05 | 281 | 2,217 | 9.9 | 836 | 1.1 | 2,149 | 9.6 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| DF | 100 | 20 | 508 | 1.0 | 25.4 | 20.00 | 508 | 18.00 | 457 | 11.05 | 281 | 3,695 | 16.4 | 1,393 | 1.9 | 3,581 | 15.9 | 30.0 | 20.7 | 20 to 23 | 27.1 to 31.2 | |
| F | 60 | 22 | 559 | 0.625 | 15.9 | 22.00 | 559 | 20.75 | 527 | 7.02 | 178 | 1,348 | 6.0 | 584 | 0.8 | 1,511 | 6.7 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| F | 100 | 22 | 559 | 0.625 | 15.9 | 22.00 | 559 | 20.75 | 527 | 7.02 | 178 | 2,247 | 10.0 | 973 | 1.3 | 2,518 | 11.2 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| DF | 60 | 22 | 559 | 0.75 | 19.1 | 22.00 | 559 | 20.50 | 521 | 8.42 | 214 | 1,705 | 7.6 | 730 | 1.0 | 1,802 | 8.2 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| DF | 100 | 22 | 559 | 0.75 | 19.1 | 22.00 | 559 | 20.50 | 521 | 8.42 | 214 | 2,842 | 12.6 | 1,217 | 1.6 | 3,004 | 13.4 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| DF | 60 | 22 | 559 | 1.0 | 25.4 | 22.00 | 559 | 20.00 | 508 | 11.05 | 281 | 2,407 | 10.7 | 1,007 | 1.4 | 2,375 | 10.6 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| DF | 100 | 22 | 559 | 1.0 | 25.4 | 22.00 | 559 | 20.00 | 508 | 11.05 | 281 | 4,011 | 17.8 | 1,679 | 2.3 | 3,958 | 17.6 | 30.0 | 20.7 | 22 to 25 | 29.8 to 33.9 | |
| F | 60 | 24 | 610 | 1.0 | 25.4 | 24.00 | 610 | 22.00 | 559 | 11.05 | 281 | 2,588 | 11.5 | 1,191 | 1.6 | 2,601 | 11.6 | 30.0 | 20.7 | 24 to 28 | 32.5 to 38.0 | |
| F | 100 | 24 | 610 | 1.0 | 25.4 | 24.00 | 610 | 22.00 | 559 | 11.05 | 281 | 4,314 | 19.2 | 1,985 | 2.7 | 4,335 | 19.3 | 30.0 | 20.7 | 24 to 28 | 32.5 to 38.0 | |
| F | 60 | 26 | 660 | 0.75 | 19.1 | 26.00 | 660 | 24.50 | 622 | 12.05 | 306 | 1,922 | 8.5 | 983 | 1.3 | 2,142 | 9.5 | 30.0 | 20.7 | 26 to 30 | 35.3 to 40.7 | |
| F | 100 | 26 | 660 | 0.75 | 19.1 | 26.00 | 660 | 24.50 | 622 | 12.05 | 306 | 3,203 | 14.2 | 1,638 | 2.2 | 3,570 | 15.9 | 30.0 | 20.7 | 26 to 30 | 35.3 to 40.7 | |
| F | 60 | 26 | 660 | 1.0 | 25.4 | 26.00 | 660 | 24.00 | 610 | 12.05 | 306 | 2,761 | 12.3 | 1,385 | 1.9 | 2,827 | 12.6 | 30.0 | 20.7 | 26 to 30 | 35.3 to 40.7 | |
| F | 100 | 26 | 660 | 1.0 | 25.4 | 26.00 | 660 | 24.00 | 610 | 12.05 | 306 | 4,602 | 20.5 | 2,309 | 3.1 | 4,712 | 21.0 | 30.0 | 20.7 | 26 to 30 | 35.3 to 40.7 | |
| F | 60 | 30 | 762 | 1.0 | 25.4 | 30.00 | 762 | 28.00 | 711 | 11.05 | 281 | 3,083 | 13.7 | 1,839 | 2.4 | 3,280 | 14.6 | 30.0 | 20.7 | 30 to 35 | 40.7 to 47.5 | |
| F | 100 | 30 | 762 | 1.0 | 25.4 | 30.00 | 762 | 28.00 | 711 | 11.05 | 281 | 5,138 | 22.9 | 3,005 | 4.1 | 5,466 | 24.3 | 30.0 | 20.7 | 30 to 35 | 40.7 to 47.5 | |
| F | 60 | 30 | 762 | 1.5 | 38.1 | 30.00 | 762 | 27.00 | 686 | 16.54 | 420 | 4,988 | 22.2 | 2,821 | 3.8 | 4,835 | 21.5 | 30.0 | 20.7 | 30 to 35 | 40.7 to 47.5 | |
| F | 100 | 30 | 762 | 1.5 | 38.1 | 30.00 | 762 | 27.00 | 686 | 16.54 | 420 | 8,813 | 37.2 | 4,702 | 6.4 | 8,058 | 35.8 | 30.0 | 20.7 | 30 to 35 | 40.7 to 47.5 | |
| DF | 60 | 36 | 914 | 1.0 | 25.4 | 36.00 | 914 | 34.00 | 864 | 11.05 | 281 | 3,503 | 15.6 | 2,485 | 3.4 | 3,958 | 17.6 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 100 | 36 | 914 | 1.0 | 25.4 | 36.00 | 914 | 34.00 | 864 | 11.05 | 281 | 5,839 | 26.0 | 4,142 | 5.6 | 6,597 | 29.3 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 60 | 36 | 914 | 1.25 | 31.8 | 36.00 | 914 | 33.50 | 851 | 14.04 | 357 | 4,672 | 20.8 | 3,269 | 4.4 | 4,913 | 21.9 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 100 | 36 | 914 | 1.25 | 31.8 | 36.00 | 914 | 33.50 | 851 | 14.04 | 357 | 7,787 | 34.6 | 5,448 | 7.4 | 8,188 | 36.4 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 60 | 36 | 914 | 1.5 | 38.1 | 36.00 | 914 | 33.00 | 838 | 16.85 | 428 | 5,924 | 25.9 | 4,019 | 5.4 | 5,853 | 26.0 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 100 | 36 | 914 | 1.5 | 38.1 | 36.00 | 914 | 33.00 | 838 | 16.85 | 428 | 9,706 | 43.2 | 6,698 | 9.1 | 9,755 | 43.4 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| F | 60 | 36 | 914 | 2.0 | 50.8 | 36.00 | 914 | 32.00 | 813 | 16.85 | 428 | 8,075 | 35.9 | 5,421 | 7.3 | 7,991 | 34.2 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| F | 100 | 36 | 914 | 2.0 | 50.8 | 36.00 | 914 | 32.00 | 813 | 16.85 | 428 | 13,459 | 59.9 | 9,035 | 12.2 | 12,818 | 57.0 | 30.0 | 20.7 | 36 to 42 | 48.8 to 56.9 | |
| DF | 60 | 42 | 1067 | 1.0 | 25.4 | 42.00 | 1067 | 40.00 | 1016 | 14.04 | 357 | 3,849 | 17.1 | 3,211 | 4.4 | 4,457 | 20.6 | 30.0 | 20.7 | 42 to 48 | 56.9 to 65.1 | |
| DF | 100 | 42 | 1067 | 1.0 | 25.4 | 42.00 | 1067 | 40.00 | 1016 | 14.04 | 357 | 6,415 | 28.5 | 5,352 | 7.3 | 7,728 | 34.4 | 30.0 | 20.7 | 42 to 48 | 56.9 to 65.1 | |
| DF | 60 | 42 | 1067 | 1.25 | 31.8 | 42.00 | 1067 | 39.5 | 1003 | 14.04 | 357 | 5,225 | 23.2 | 4,308 | 5.8 | 5,761 | 25.6 | 30.0 | 20.7 | 42 to 48 | 56.9 to 65.1 | |
| DF | 100 | 42 | 1067 | 1.25 | 31.8 | 42.00 | 1067 | 39.5 | 1003 | 14.04 | 357 | 8,709 | 38.7 | 7,180 | 9.7 | 9,601 | 42.7 | 30.0 | 20.7 | 42 to 48 | 56.9 to 65.1 | |
PMM Weight Set FINITE ELEMENT ANALYSIS
TENSILE
BENDING
INTERNAL PRESSURE
COLLAPSE PRESSURE
